Description

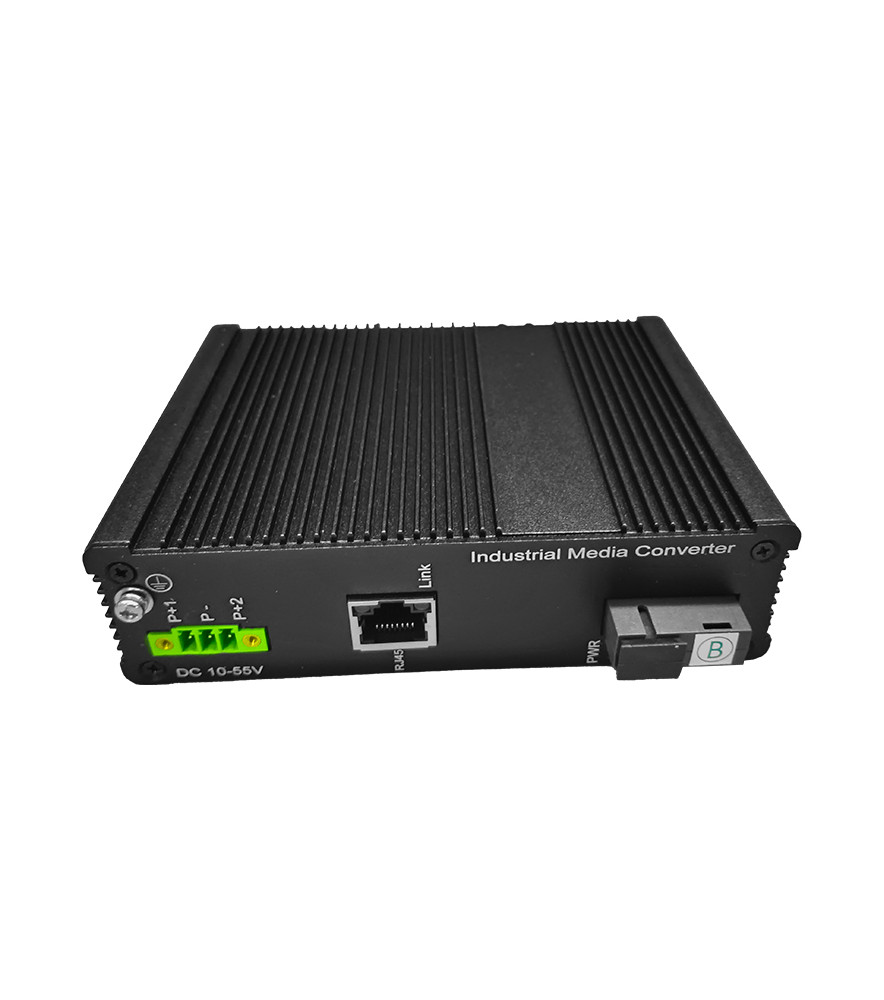

OFS-IDS-XX series is an unmanaged 100M industrial

Ethernet fast switch independently developed by our company,

supporting 1 100M optical port slot + 1 10/100Base-T adaptive

RJ45 port .

OFS-IDS-XX series products fully comply with industrial

product design and materials. The shell is made of aluminum

alloy to enhance heat dissipation efficiency. Through fanless

heat dissipation circuit design, wide range of working

environment temperature, high protection level and other

technologies, it provides high/low temperature resistance, anti-

Excellent industrial-grade quality such as lightning;

industrial-grade three-level ESD protection is suitable for

various occasions, such as intelligent transportation, outdoor

surveillance, industrial networks, safe cities and other

deployment requirements in harsh environments.

IEEE Ethernet Standards IEEE802.3, IEEE802.3u, IEEE 802.3x

Ports 1*10/100MBase-T. 1*100MBase-X

Switch Performance

Architecture Store-and-forward

exchange capacity 1.6Gbps

Buffer 448k

Mac Address Table 1k

forwarding delay <10us

flow control support

storm suppression support

package length support 1536bytes

cable

Twisted pair 0-100m (/cat 5, cat 6)

Single mode fiber 20/40/60/80/100/120km

Multimode fiber 2km

Mechanical properties IEC60068-2-6 (anti vibration). IEC60068-2-27 (anti shock). IEC60068-2-32 (free fall)
