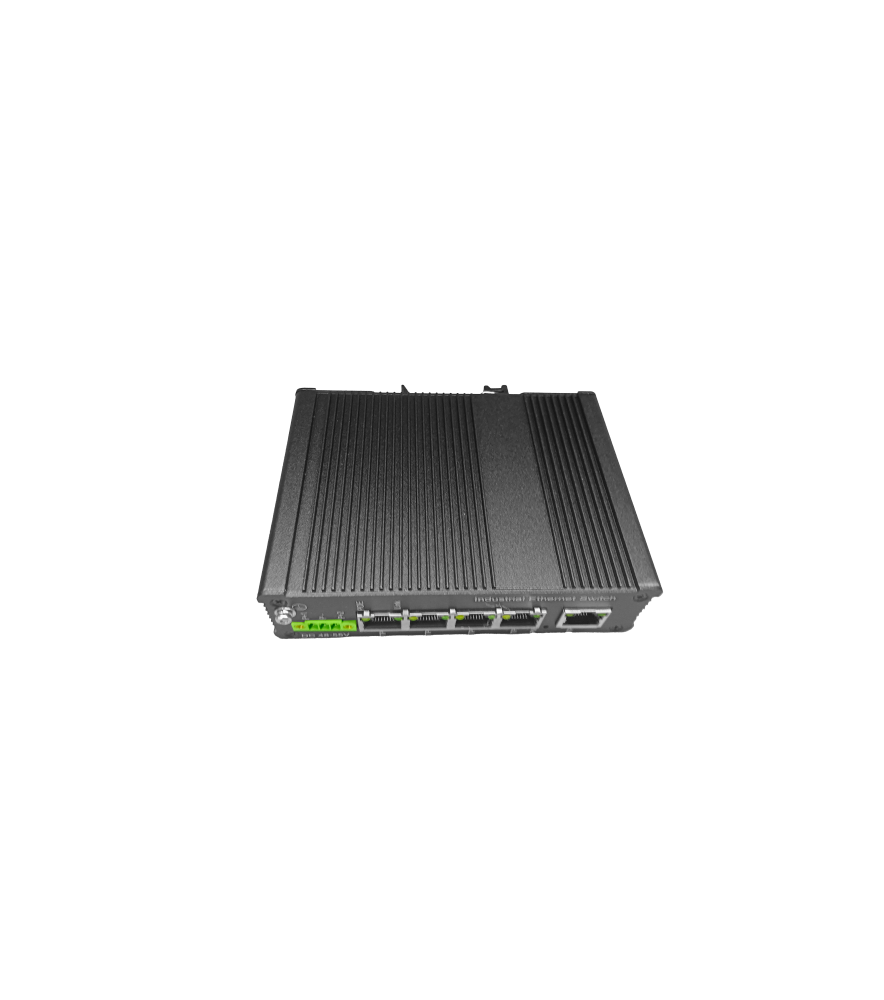

Switch Industrial POE 5 Porturi Rj45 Gigabit OFS-PE-IGT5
Switch Industrial POE 5 Porturi Rj45 Gigabit OFS-PE-IGT5
349 RON cu TVA
288.43 RON FARA TVA
MIV1343
Switch Industrial POE 5 Porturi Rj45 Gigabit OFS-PE-IGT5
Description
The OFS-PE-IGT5 series is an industrial Ethernet switch/media converter independent development by *****,with 5*10/100/1000M Ethernet ports , It uses the latest IC in the United States, with stable performance, high quality and high cost performance. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.
Ø 5 Port 10/100/1000Mbps POE RJ45 with Auto Uplink
Ø Automatic MAC address learning and aging
Ø Automatically support IGMP (Multicasting)
Ø 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
Ø LED indicators for monitoring power/link/activity
Ø Supports 10/100/1000Mbps-Full/Half-duplex
Ø Supports Wall-mount and DIN-Rail installation for lightning protection
Ø Supports Daisy-Chain connection
Ø Supports Broadcast Storm Control
Ø Supports Relay output for power failure
Ø Super lightening protection, IP40 protection.
Ø Excellent heat elimination without cooling fan.
Ø Redundant dual DC power inputs.
Ø Redundant Power Inputs
Ø Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Ø Harsh industrial environment or higher requirement
Ø -45ˇ-85ˇ operating temperature range
|
Ports |
10/100/1000MBase-T (5) |
|
Switch Performance |
Architecture Store-and-forward Bandwidth 12.0Gbps Buffer 1Mbps Mac Address Table 8192 |
|
PoE( Need customer order will add POE module inside) |
Standard IEEE802.3af/at. PSE Type End-span Power Pin Assignment 1 / 2 (+), 3 / 6 (-) . |
|
Twisted Pair Transmission |
Twisted pair 0-100m (cat 5, cat 6) Single mode fiber 20/40/60/80/100/120km Multimode fiber 2km |
|
Mechanical properties |
IEC60068-2-6 (anti vibration). IEC60068-2-27 (anti shock). IEC60068-2-32 (free fall) |
|
Anti-surge / Protection Level |
Anti-surge:4KV 8/20us; Protection Level:IP40 IEC61000-4-2 IEC61000-4-4 IEC61000-4-9 (Pulsed Magnetic Field) 1000A/m IEC61000-4-10 (Damping Oscillation) 30A/m ,1MHz IEC61000-4-12/18 (SHOCKWAVE) CM 2.5kV, DM 1kV IEC61000-4-16 (Common Mode Conduction) 30V Continued; 300V,1s FCC Part 15/CISPR22 IEC61000-6-2(General Industry standard) |
|
Power |
POE DC power Input 48~55Vdc( when choice POE module) Power Consumption < 10W (without PoE output) POE Budget 30W Overload Current Protection Yes Reverse polarity protection Yes |
|
Mechanical |
Enclosure Ip40, Dimension (W*L*H) 130mm * 94mm * 35mm |
|
Environmental |
Operating Temperature -40 ~ +85Degree Storage Temperature -40 ~ +85Degree Operating humidity 5%~95% non-condensing |
MIV1343
10 Produse
Fisa tehnica
- Porturi
- 5 porturi
- Viteza
- 1000 MB
- Tip Switch
- Industrial
- Management
- Nu
