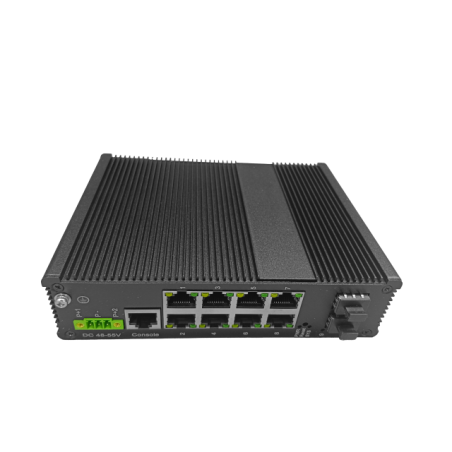

Switch Industrial POE 8 Porturi Rj45 Gigabit + 2 Porturi SFP Gigabit Cu Management OFS-PE-M2IGSF2T8

870 RON cu TVA

719.01 RON FARA TVA

Cod produs MIV1354

Cantitate

In stoc 4 Buc

Adauga la favorite

Descriere
Detalii produs

Ø Support ERPS fast ring network and STP/RSTP/MSTP production tree protocol, eliminate layer 2 loops and realize link backup

Ø Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to their needs, support Voice VLAN, and support QinQ configuration.

Ø Support IGMP V1/V2 multicast protocol, support IGMP Snooping, meet the multi-terminal high-definition video Ø Frequency monitoring and video conference access requirements.

Ø Support port isolation

Ø Support port broadcast storm suppression

Ø Supports diversified management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3) Telnet, etc.

Ø Support HTTPS, SSLV3, SSHV1/V2 and other encryption methods, management is more secure.

Ø Support RMON, system log, port traffic statistics, which is convenient for network optimization and transformation.

Ø Supports LLDP, which is convenient for the network management system to query and judge the communication status of the link.

Ø Support CPU monitoring, memory monitoring, Ping detection, cable length detection.

Ø Users can easily understand the working status of the device through the power indicator (PWR), system running

indicator (SYS), and port status indicator (Link, L/A).

Ports

8*10/100/1000MBase-TX,2*10/100/1000MBase-FX

exchange capacity 40Gbps packet forwarding rate 14.9Mbps Mac Address Table 16k packet buffer 8M forwarding delay <10us flow control support storm suppression support jumbo frame support 10kbytes

Support STP/RSTP/MSTP

Support DHCP

Support ring network protocol ERPS

Support link aggregation (12 groups)

Support IGMP Snooping

Support port mirroring

Support for storm suppression

Support port traffic statistics

Support QINQ

Support ACL ： Support ACL 500;

Supports IP standard ACLs

Support Support MAC extended ACL;

Support IP extended ACL;

Support QOS：Support QoS re-marking, priority mapping;

Support SP, WRR queue scheduling;

Support entry speed limit, exit speed limit;

Supports flow-based QoS

management function

CLI

WEB management

Telnet

SNMPv1/v2

User Management System log file upgrade

Firmware upgrade

PoE( Need customer order will add POE module

inside)

Standard IEEE802.3af/at.

PSE Type End-span

Power Pin Assignment 1 / 2 (+), 3 / 6 (-) .

Each port up to 30W

Twisted Pair Transmission

Cat 5,6 UTP(ˇ100 meter)

Single mode fiber 20/40/60/80/100KM

Multimode fiber 550m/2KM

Anti-surge / Protection Level

Anti-surge:4KV 8/20us; Protection Level:IP40

IEC61000-4-2 8kV Contact Discharge,ˇ15kV

IEC61000-4-310V/m 80~1000MHzŁ

IEC61000-4-4Power Line: ˇ4kV; Data Line: ˇ2kV

IEC61000-4-5 Power Line,CMˇ4kV/DMˇ2kV Ł

100A/m Continued; 1000A/m,1s to 3s

IEC61000-4-9 (Pulsed Magnetic Field) 1000A/m

IEC61000-4-10 (Damping Oscillation) 30A/m ,1MHz

IEC61000-4-12/18 (SHOCKWAVE) CM 2.5kV, DM 1kV

IEC61000-4-16 (Common Mode Conduction) 30V Continued; 300V,1s

FCC Part 15/CISPR22Class A

IEC61000-6-2(General Industry standard)

Power

DC Power Input 48~ 55Vdc

POE full load <132W

Overload Current Protection Yes

Reverse polarity protection Yes

MTBF

100000 Hour

Mechanical

Enclosure Ip40

Dimension (W*L*H) 181mm * 146mm * 47 mm

Weight 1kg

Card rail installation

Environmental

Operating Temperature -40 ~ +85Degree

Storage Temperature -40 ~ +85Degree

Operating humidity 5%~95% non-condensing

Cod produs MIV1354

In stoc 4 Produse

Fisa tehnica

Porturi: 8 porturi
Viteza: 1000 MB
Tip Switch: Industrial
Management: Da
