ONU V-Solution V2801D V2801D-1GT1 V2 1GE+CATV(with AGC)
ONU V-Solution V2801D V2801D-1GT1 V2 1GE+CATV(with AGC)
149 RON cu TVA
123.14 RON FARA TVA
MIV457
ONU V-Solution V2801D V2801D-1GT1 V2 1GE+CATV(with AGC)
(Se poate opri CATV remote )`
Comercializarea acestui produs se face doar în cantități en gros către companii.

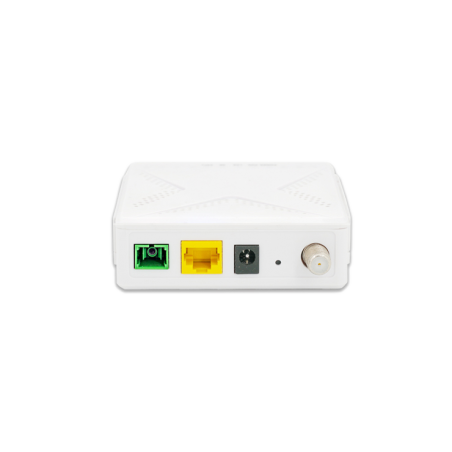

V2801D is 1GE+CATV ONU designed for fulfilling FTTH ultra-broadband access request of home and SOHO users.
Material: ABS Plastic
Size: 82mm×82mm×25mm
Weight: 85g
|
Technical item |
1GE+CATV ONU |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
LAN interface |
1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector |
|
LED |
3, For Status of REG、SYS、LINK/ACT |
|
Operating condition |
Temperature: -30℃～+70℃ Humidity: 10%～90%（non-condensing） |
|
Storing condition |
Temperature : -30℃～+70℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/0.5A(option) |
|
Power consumption |
≤4W |
|
Dimension |
82mm×82mm×25mm（L×W×H） |
|
Net weight |
85g |
|
Software Key Feature |
|
|
EPON/GPON mode |
Dual mode , Can access EPON/GPON OLTs. |
|
Software mode |
Bridging mode and Routing mode. |
|
Abnormal protection |
Detecting Rogue ONU, Hardware Dying Gasp. |
|
Firewall |
DDOS, Filtering Based on ACL/MAC/URL. |
|
Layer2 |
802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN. |
|
Layer3 |
IPv4/IPv6, DHCP Client/Server , PPPoE, NAT , DMZ ,DDNS. |
|
Multicast |
IGMP v1/v2/v3 , IGMP snooping. |
|
Security |
Flow & Storm control, Loop Detection. |
|
O&M |
WEB/TELNET/OAM/OMCI/TR069. |
