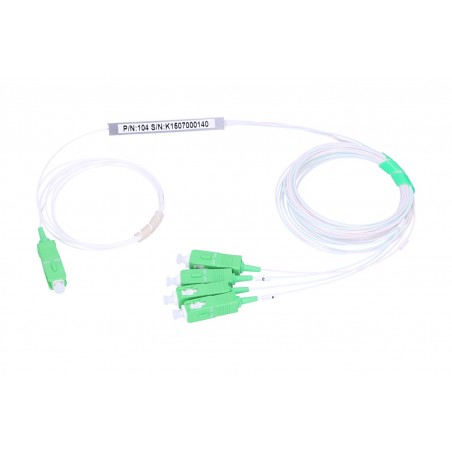

Spliter optic PLC 1x4 cu conectori SC/APC

Spliter optic PLC 1x4 cu conectori SC/APC

28 RON cu TVA
39 RON

23.53 RON FARA TVA

MIV007

Spliter optic PLC 1x4 cu conectori

Cantitate
In stoc 148 buc

  • *Fiber standard : G.657.A1
  • *Length : 1.5m
  • *Number of splitter ends : 1x4
  • Cable diameter : 0,9mm
  • Splitter case type : Steel tube
  • Splitter technology : PLC

ABOUT PRODUCT

EXTRALINK PLC 1:4 0.9 mm fiber optic splitter with SC/APC connectors

Fiber optic splitters are used in FTTH networks, where the Internet is delivered to the customers by means of an optical fibre led from the server room to the customer's device without changing the transmission medium. The specificity of this technology requires that the signal is distributed to the clients without using additional active devices.

Splitter PLC with symmetrical 1:4 power distribution, with both input and output connectors. The compact steel box housing enables easy installation in switches and fiber optic couplers.

The Splitter is built on a thin 0.9 mm pigtail cable, so it can be easily installed in various types of organizers.

The product is packaged in blister packs to prevent tangling of cables.

SPECIFICATION

Wavelength 1260-1620nm
Max. Insertion Loss (dB) ≤7.6
Uniformity (dB) ≤0.8
Return loss (dB) ≥50
Extralink
MIV007
148 Produse
2021-03-18
